Product Display
Product Parameters

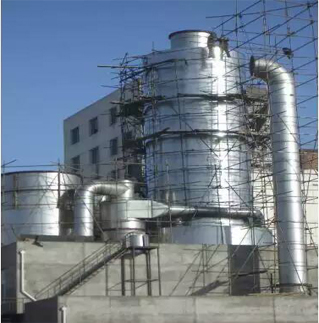

| Machine Name | FDG-500 Washing Powder Pressure Type Spray Dryer |
| Voltage/Frequency | 380V/50Hz |
| Capacity | 500kg/h |
| Handling (Initial) Capacity |
980kg/h |
| Material | SUS201& Carbon steel |
| Dryer Type | Pressuretype spray dryer tower |
| Size of Dryer Tower Body | 2800mm*2.0mm*18900mm |
| Emission Requirements | Emissions of China GB Standard (dustiness?50mg/m3 Standard dry air) |
| Machine Configuration | Drying System (dry tower body, skeleton, hot air distributor, observation manhole,discharge pipe & cleaning manhole, cone pneumatic hammer, steel support,hot air duct into the tower, connecting duct with variable diameter, thermal insulation material), Heating System (gas fuel furnace), Air Supply System (fan, air filter), Feeding Pump, Spray Gun, Receiving System (high efficiency cyclone separator, discharge valve), Exhaust System (pipes, cloth bag dust collector), Induced Draft Fan, Control System (control cabinet, frequency converter, temperature sensor, pressure sensor), Auxiliary System (handrail,escalator, site wire and cable bridge steelworks, site steel platform) |
| Function | It is multi-functional, capable of producing washing powder as well as applying to food industry and medical industry etc. to produce puffed products |
